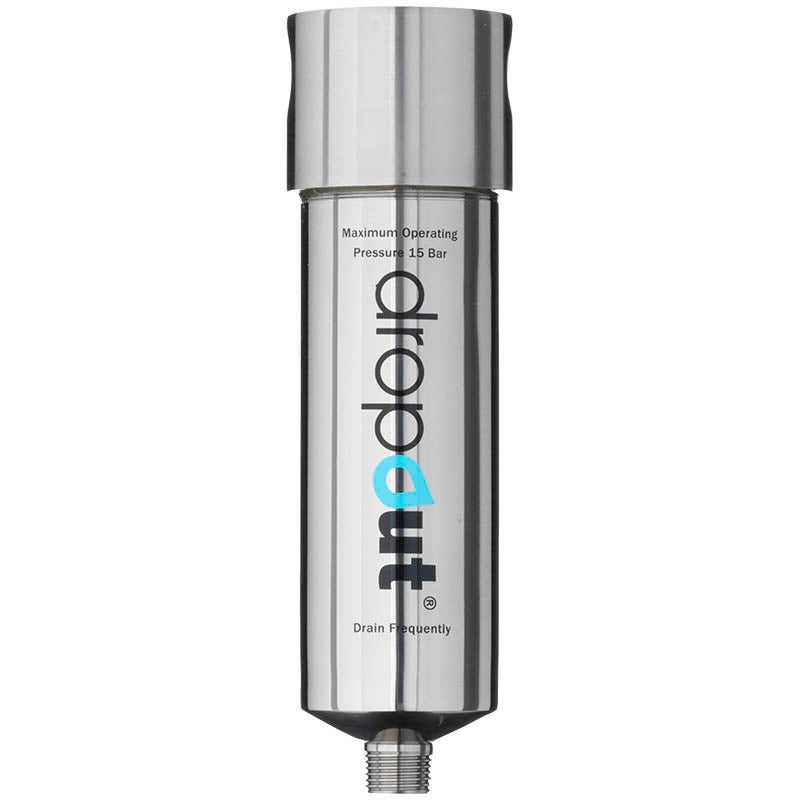

Dropout Water Separator Stainless Steel, 450 l/min, 1/2 Ports
The sealed for life Stainless Steel Grade 304 Dropout® Water Separator is available in a range of port sizes and flow rates. Comes complete with a wall bracket and drain valve for manual drainage.
Dropout® offers an extremely high performance all-in-one solution. Its unique patent design allows the unit to efficiently remove 99.9999% of liquid (water & oil) and 99% solid particulate down to 1 micron at a wide range of flow rates without mains power or costly replacement filter elements.
Recommended for use where there is a high concentration of water in the air supply, Dropout® units are frequently used in paint and refinish environments as an alternative to dryers, where moisture-free air is essential.
- Guaranteed 99.9999% liquid water removal
- Particulate removal to 1 micron
- No increase in pressure drop caused by blocked filters
- Instantaneous recovery from pulsed flows or stop start
- No requirement for replacement filter cartridges
- 100% sealed for life Stainless Steel Grade 304 housing
- Low cost of ownership and maintenance free
- Complete with wall bracket and drain valve
Certified to: ISO 12500 parts 3 & 4
ATEX Mark: Ex II 2G IIC T6 Gb
Shipping Weight (kg) | 1.5 |
---|---|
ean | 5014875130828 |
Brand | Dropout |
Approvals | Certified to: ISO 12500 parts 3 & 4 |
Air Treatment Type | Filter |
Filtration Size | 1 µm |
Inlet Connection | 1/2 in |
Outlet Connection | 1/2 in |
Max Inlet Pressure | 15 bar |
Drain Type | Manual |
Flow Rate | 450 l/min / 15.9 cfm |
Temperature | 0°C to 80°C |
